(T1230-04-19) Novel Targeted Drug and Metabolites Mapping Using DESI MRM Triple Quadrupole Mass Spectrometer Providing Increased Sensitivity and Acquisition Speed for Mass Spectrometry Imaging

Purpose: Mass spectrometry imaging (MSI) has been successfully used for spatial biomarker discovery, drug biodistribution and for clinical research applications. Most of the studies were conducted using a high resolution TOF mass spectrometers, starting with MALDI and more recently using DESI ionisation techniques. Once the targeted molecules have been identified (drug or biomarker), there is a need for a more sensitive and faster MSI technique.

Methods: MSI experiments were carried out using a DESI XS source mounted on a TQ MS in positive and negative ionisation mode. All experiment were performed in MRM mode. DESI High-Performance sprayer conditions were set at 2 µL/min, 95:5 MeOH: water, with a N₂ nebulising gas pressure was set at 10-15 psi and capillary voltage set between 0.55 to 0.8 kV allowing a focused spray. The samples were imaged at different pixel sizes from 15 up to 75 µm and a range of acquisition speeds from 5 Hz up to 50 Hz.

Results: Pharmaceutical compound, chloroquine, was spotted on a control porcine liver tissue section in different concentrations from 0.003 µM up to 30 µM in a 10 fold dilution series. One series was imaged at a speed of 10 Hz with two MRM transitions for chloroquine (320.2 > 142.17 and 320.2 > 274.1) and MRM transitions for protonated PC (34:6) (782.55 > 184) which led to a dwell time of 21 ms per MRM transition per pixel. A second series was acquired with only two of the MRM transitions at 50 Hz, leading to a dwell time of 6 ms. For both acquisition speeds, chloroquine was detected from the 0.3 µM spot with s S/N=14. Further pharmaceutical compound dilution series such as a mix solution of propranolol, olanzapine, erlotinib, moxifloxacin, terfenadine and irinotecan was DESI imaged at 10 Hz. LODs were determined between 0.02 µM and 0.25 µM. Calibration curves were generated by drawing regions of interest (ROIs) for each spot and average intensities were plotted vs. amount per spot. For all compounds the calibration curves shown linearity superior as R² of 0.99. Additional experiments were performed for drugs administrated in tissue to visualise drugs and their metabolites as well as endogenous molecules at different acquisition speeds to demonstrate the efficacity of the target imaging system for pre-clinical research applications.

Conclusion: We have demonstrated drug and biomarkers with increased level of detection and acquisition speed using a targeted DESI MRM TQ system.

References: 1J.Chong; Nucl. Acids Res., 2018, 46, W486-494.
2B.Molloy; Metabolites 2021, 11, 379.
3R.S.Plumb; J. Proteome Res. 2022, 21, 3, 691–701
4B.Molloy; XENOBIOTICA, 2021, VOL. 51, NO. 4, 434–446

Acknowledgements: Suraj Dhungana, Emmanuelle Claude and Joanne Ballantyne are employees of Waters Corporation and presenting the poster on behalf of the company

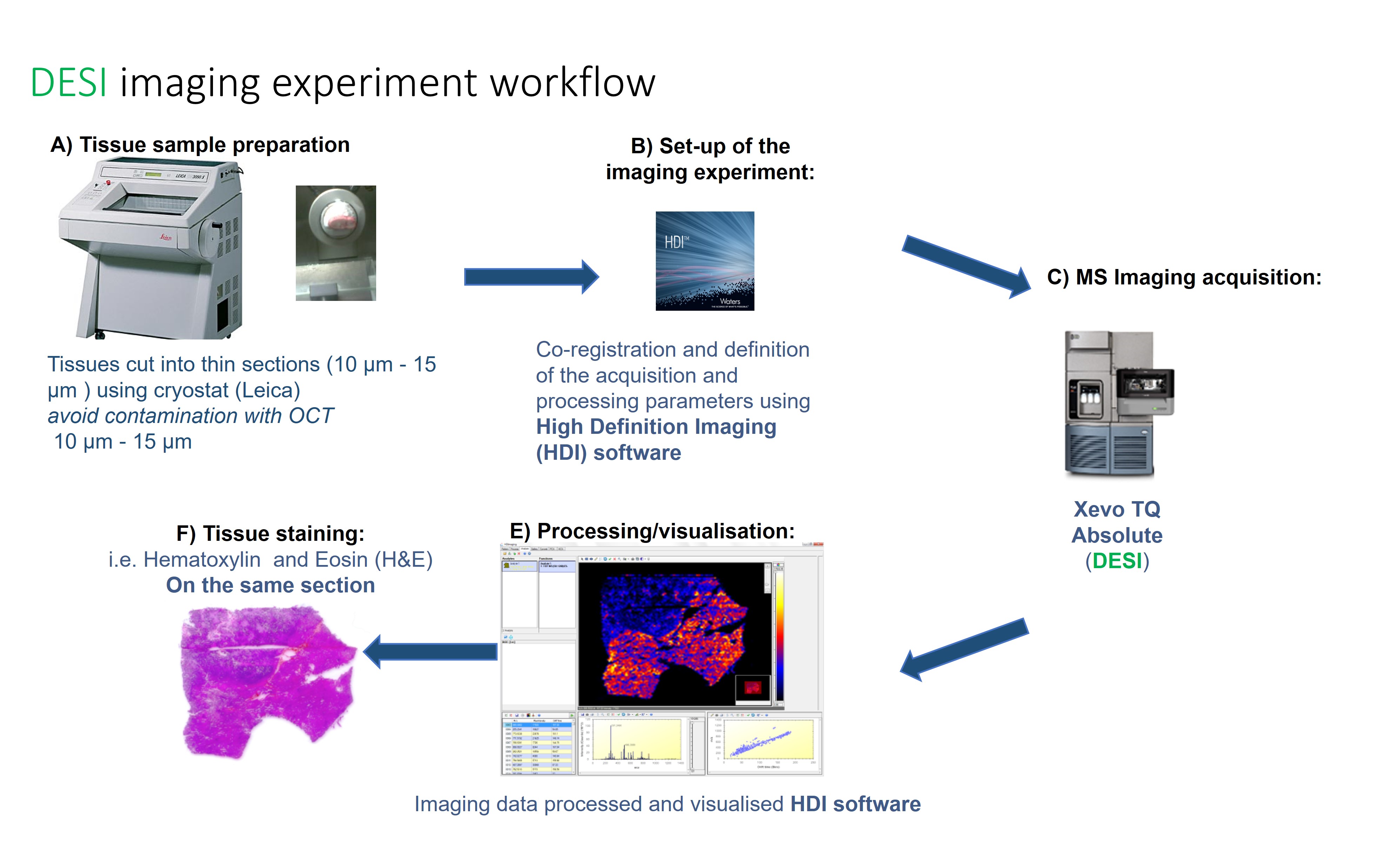

DESI mass spectrometry imaging workflow

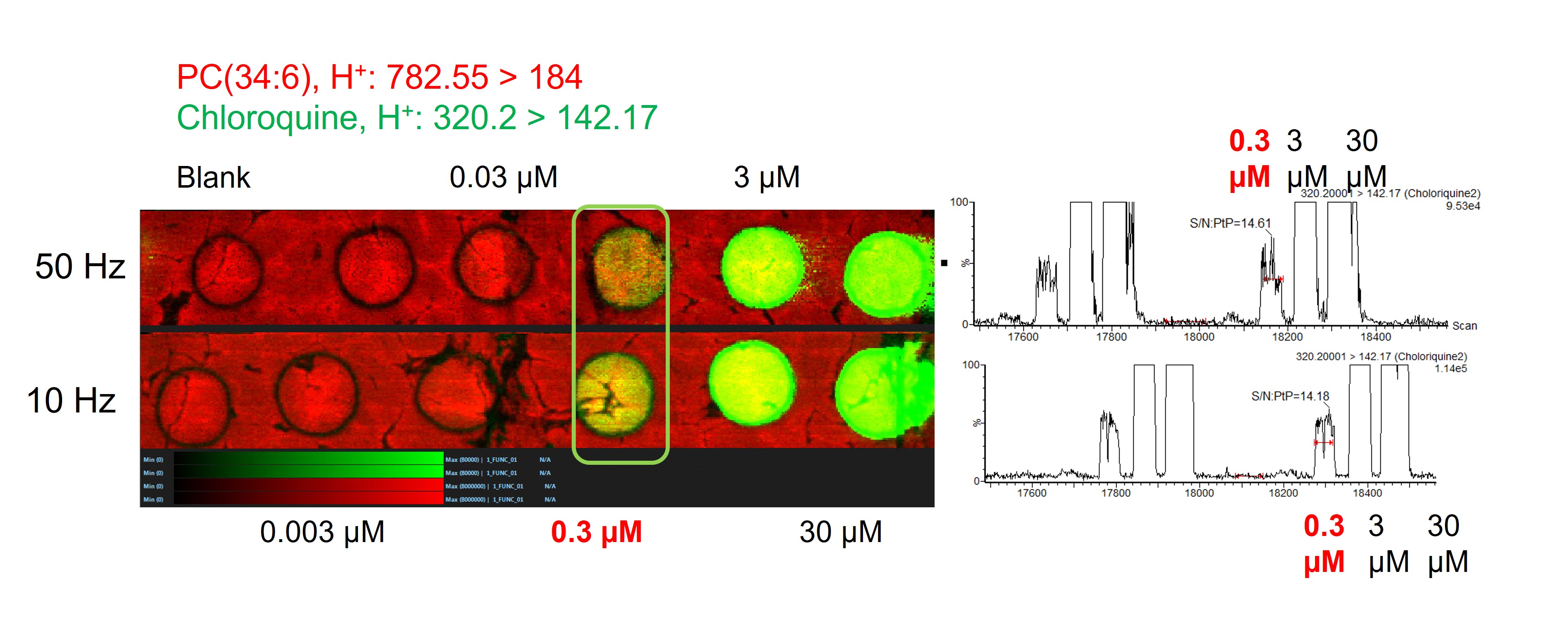

Chloroquine dilution series spotted on porcine liver tissue (0.003 to 30 µM) imaged using the targeted MRM TQ mass spectrometer. RGB overlay ion image with protonated lipid PC(36:4) (in red) and Chloroquine (in green).

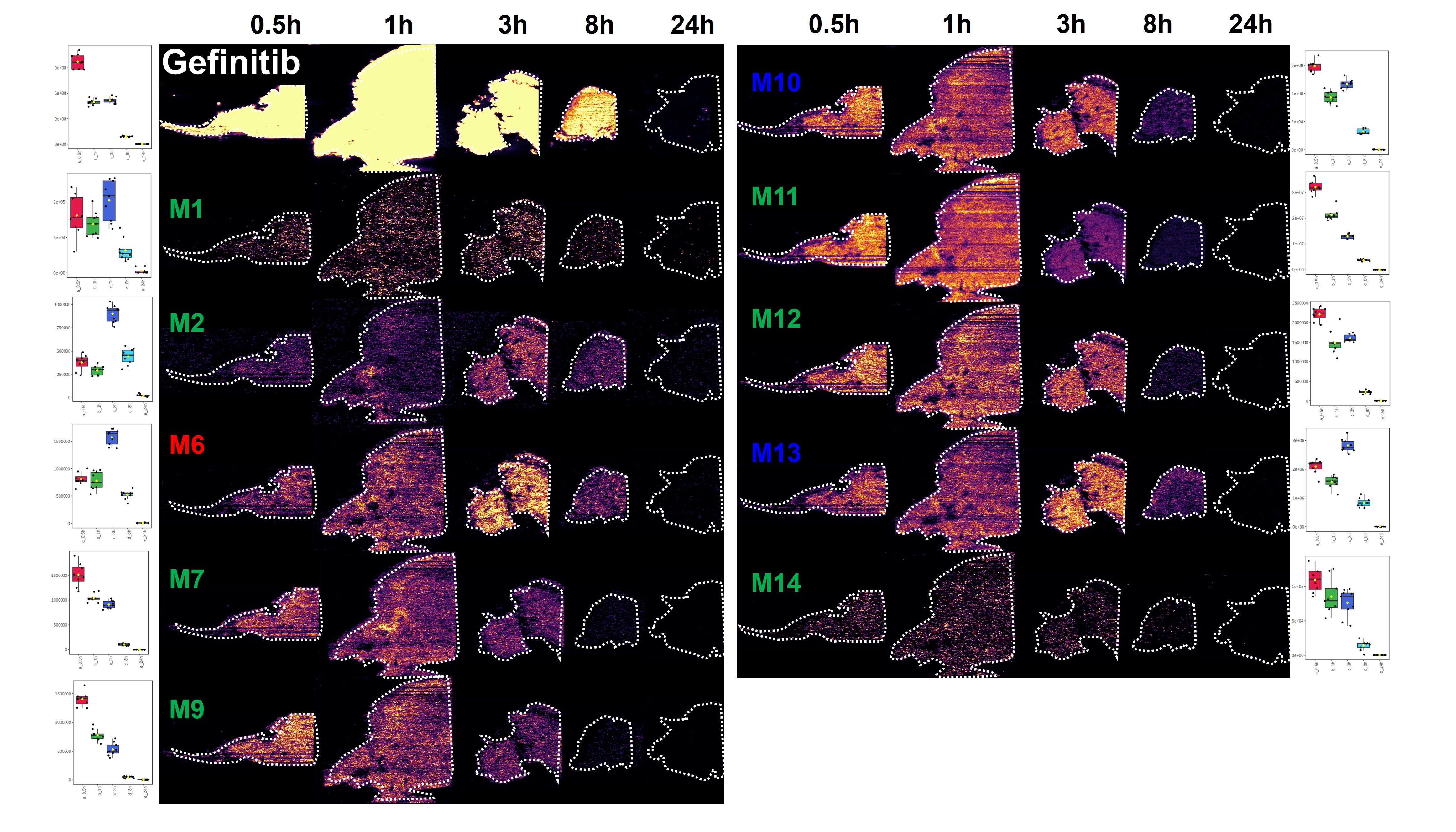

0.5, 1, 3, 8 and 24h post-dose tissue sections ion images of Gefitinib and 16 of the known metabolites (M1, M2, M6, M7, M9, M10, M11, M12, M13 and M14) analysed using using the targeted MRM TQ mass spectrometer
